- Powerful brushless EC-TEC motor with speeds up to 6800 rpm ensures fast cutting and perfect results
- Dual battery system with 2 battery packs from 4Ah (required)

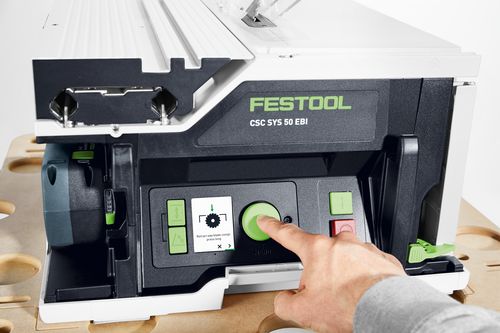

- Extremely precise: cutting height and cutting angle are electrically adjusted at the press of a button via the digital display
- Ball bearing mounted slide for precise parallel and angle cuts. Angle stop provides precise angles from -70 to 70 degrees
- 4 saw blade positions can be saved and selected via the digital display
- Compact and mobile: carry by hand or using the UG-CSC-SYS underframe
Technical data
Battery Voltage: |
2 x 18V |
Idle engine speed: |
4500 - 6800 min-1 |
Saw blade: |
168 mm with 20mm hole |
Cutting height 90°/45°: |
0-48/0-34 mm |
Inclination: |
-2 ° to +47)° |
Parallel cut width: |
280 mm |
Table top height: |
280 mm |
Dimensions: |
512 x 396 x 296 mm |
Weight: |
15 kg |

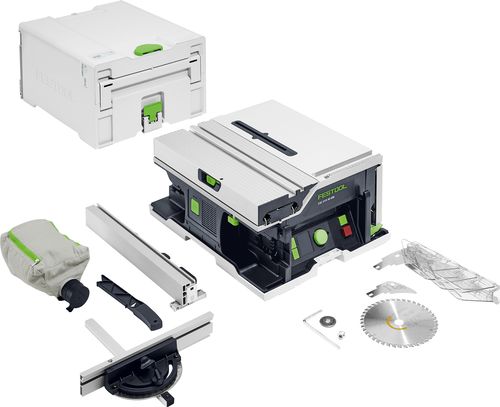

Items included
Wood fine cut blade HW 168 x 1.8 x 20 WD42, angle stop, parallel side fence, workpiece holder, preset profile cutting rail, chip collection bag, splitting wedge for concealed cuts, splitting wedge with protective hood, operation tool.
Excludes batteries and charger
