DOMINO DFC500 E BASIC SYS - from 2026
DOMINO DFC500 E BASIC SYS - from 2026
Description

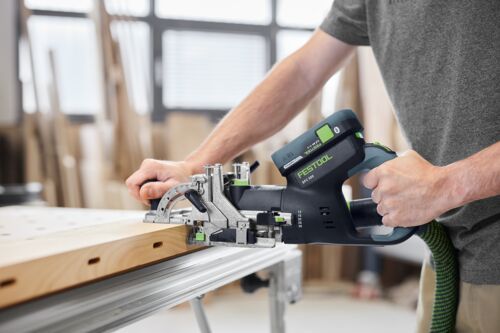

Joining machine DOMINO DFC 500
DOMINO DFC 500 E BASIC
- Diverse use with dowels from 4 x 20 mm to 10 x 50 mm
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Ergonomic shape and spade handle with soft grip for ease of operation
- Improved guide frame with clear markings
Technical data
| Battery power: | 18 V |
| Idle engine speed: | 18500 min-1 |
| Depth stop for routing depth: | 12, 15, 20, 25, 28 mm |
| Max. milling depth: | 28 mm |
| DOMINO slot cutter Ø: | 4, 5, 6, 8, 10 mm |
| Routing height adjustment: | 5-30 mm |
| Mitre routing: | 0-90 ° |
| Connection Ø d/e: | 27 mm |
| Weight: | 3.4 kg |
Items included
DOMINO cutter D5, support bracket, operation tool, in a SYSTAINER
DOMINO cutter D5, support bracket, operation tool, in a SYSTAINER
Technical Data Sheet
SDoc DFC500.pdf (167.99 KB)
